Central Controller HT-2560 (Complete Kit)

Central Controller HT-2560

Smart RV Power Management System

Take total control of your RV or caravan’s electrical system with the HT-2560 Central Controller Module by Hi-Tech Power Solutions. Designed with convenience, safety, and modern connectivity in mind, this powerful module offers centralized, intuitive control of your vehicle’s essential systems—right from your fingertips.

Item List:

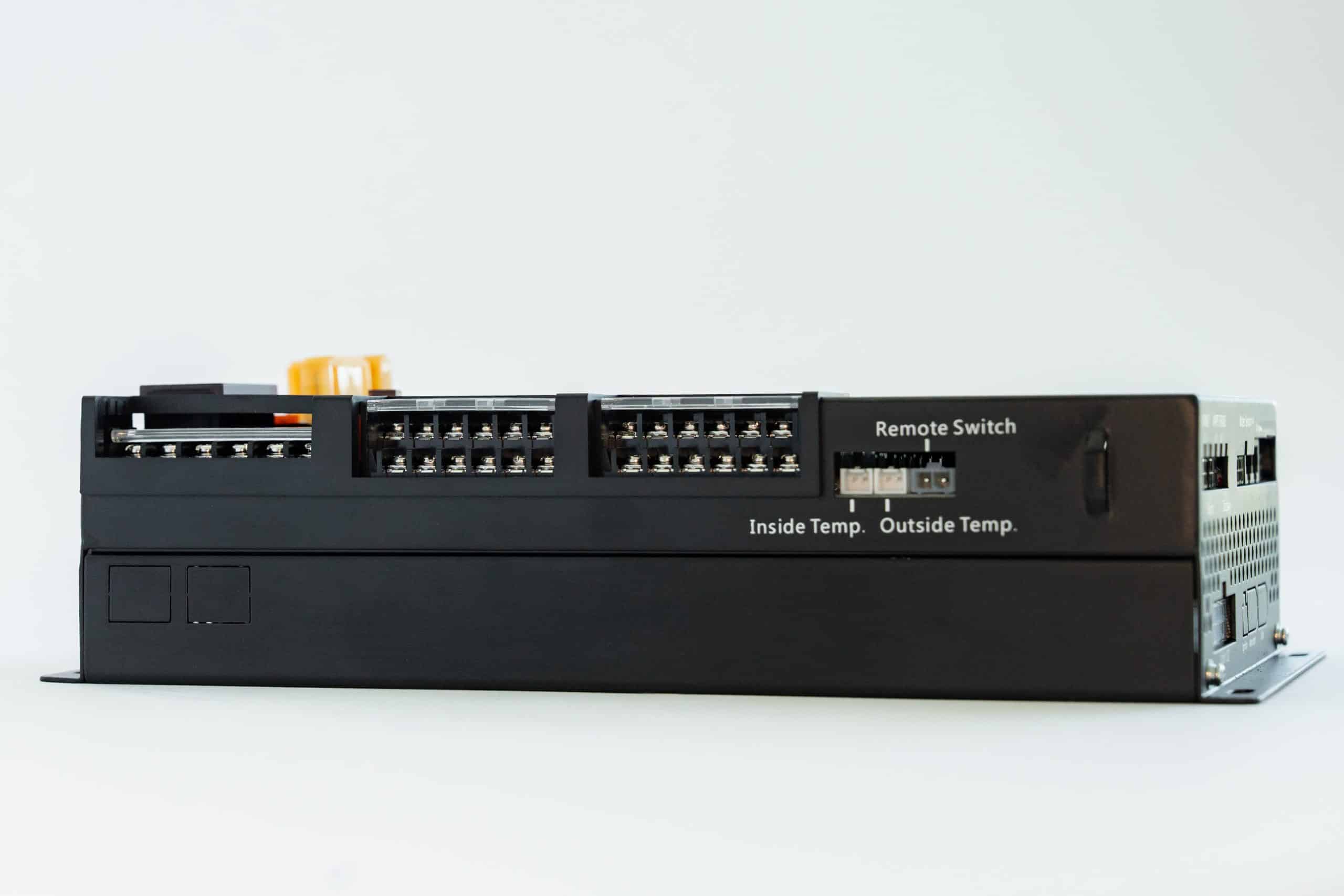

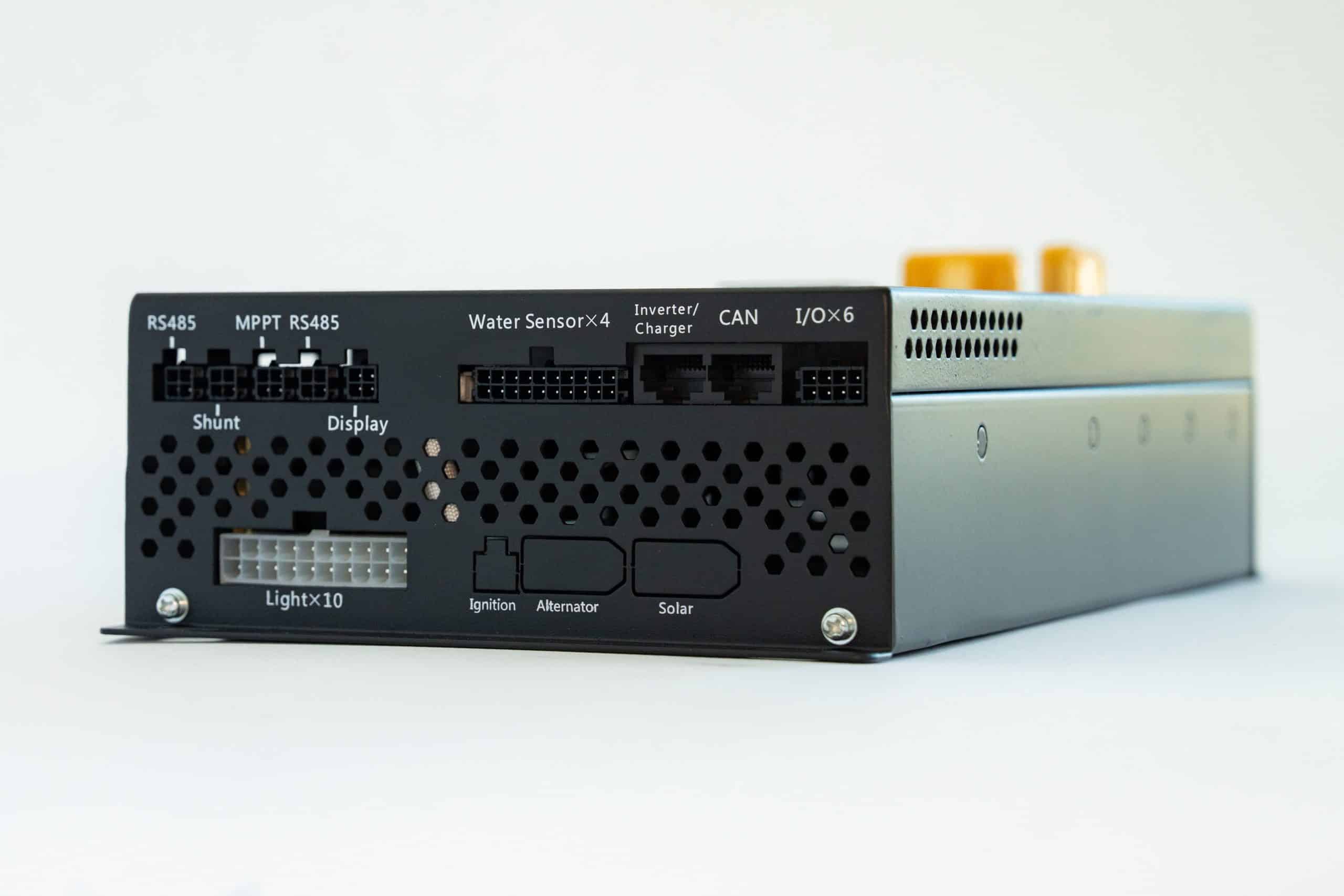

• Controller Module

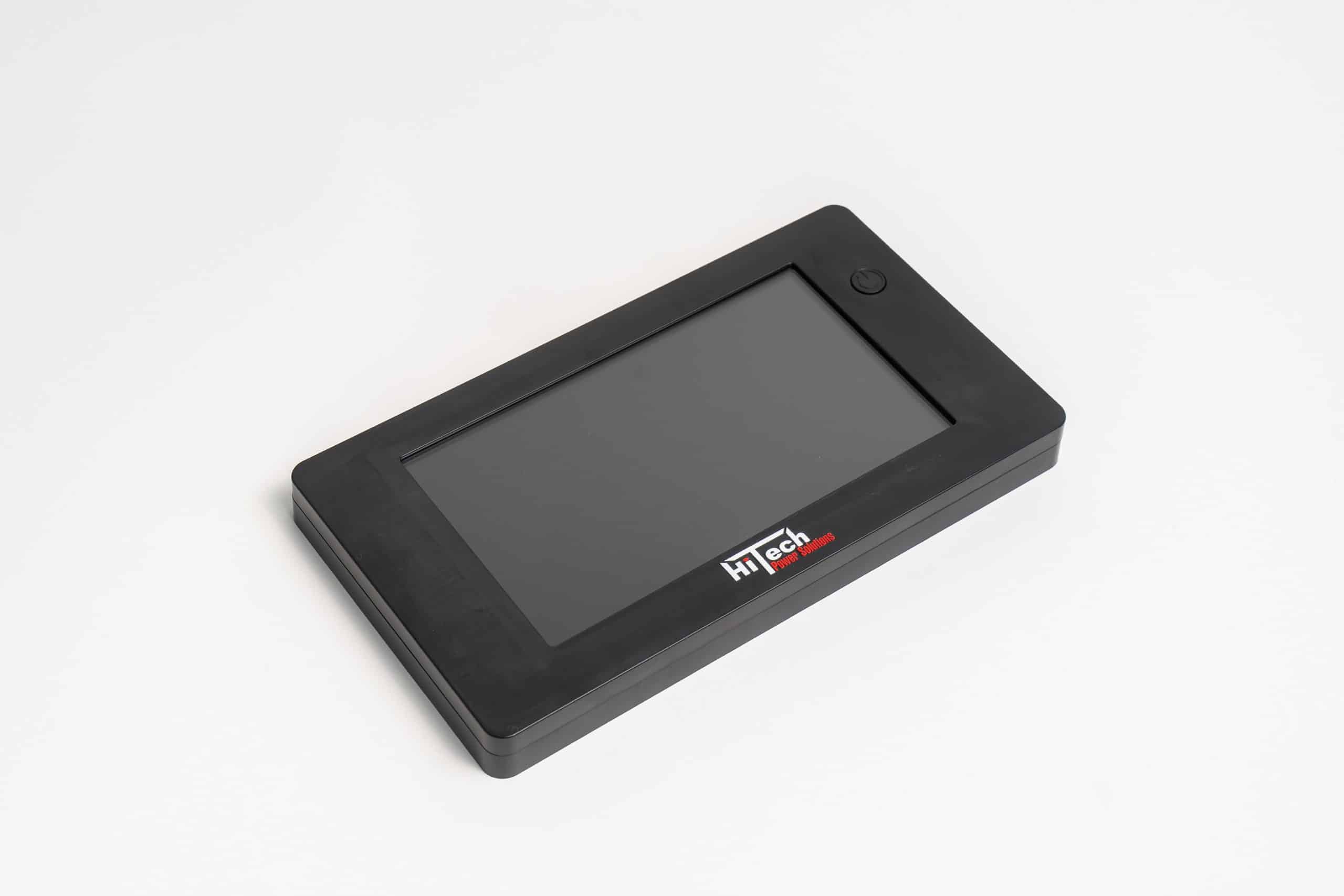

• Touch Panel
• Smart Shunt
• Wireless switch (4 Gang x 1, 6 Gang x 1)
• System Information Panel
• Required Cables
• Manual

Key Features:

• Centralized Touch Panel Control: Manage all key systems including lighting, pumps, and power outputs from one easy-to-use panel.

• HiTech Connect App Compatibility: Monitor and control your systems remotely via your smartphone (Android & iOS).

• Wireless Light Control: Supports up to 10 light points with overload protection through inbuilt 5A auto-resettable fuses.

• Pump Control: Operate and monitor two independent water pumps with dedicated 10A fuses.

• Versatile Power Outputs: Includes 6 × 10A and 4 × 15A channels for appliances, auxiliary lighting, and device charging.

• Direct Power Distribution: Three high-power terminals—one rated up to 30A and two up to 20A—for critical components.

• Smart Monitoring Sensors:

  • Temperature Sensors (interior & exterior)

  • Water Tank Level Monitoring (fresh and grey tanks)

  • Shunt Sensor for power usage tracking

  • Inverter/Charger Sensor for battery, AC output, and fault status

Mobile App Integration:

Easily monitor your RV’s vital stats via the HiTech Connect App, which provides real-time updates on:

• Battery voltage, power, and charge status

• Tank water levels

• Interior and exterior temperatures

• General system performance and power outputs

You can even rename your lights within the app for a personalized user experience.

Technical Specifications:

• Operating Voltage: 12V DC

• Max Input Current: 60A

• Power Outputs:

  • 6 × 10A | 4 × 15A

  • 1 × 30A | 2 × 20A direct power

• Fuse Protection: Multiple fuses for light, pump, and output circuits

• Temperature Range: -5°C to 55°C

• Communication: RS485 for long-range device integration

Easy Installation & Maintenance:

Includes a complete installation guide, pre-install checklist, wiring diagrams, and safety instructions. Designed for dry, well-ventilated spaces with secure mounting.

Warranty & Support:

• 12-Month Warranty covering manufacturing defects

• Dedicated customer support:
