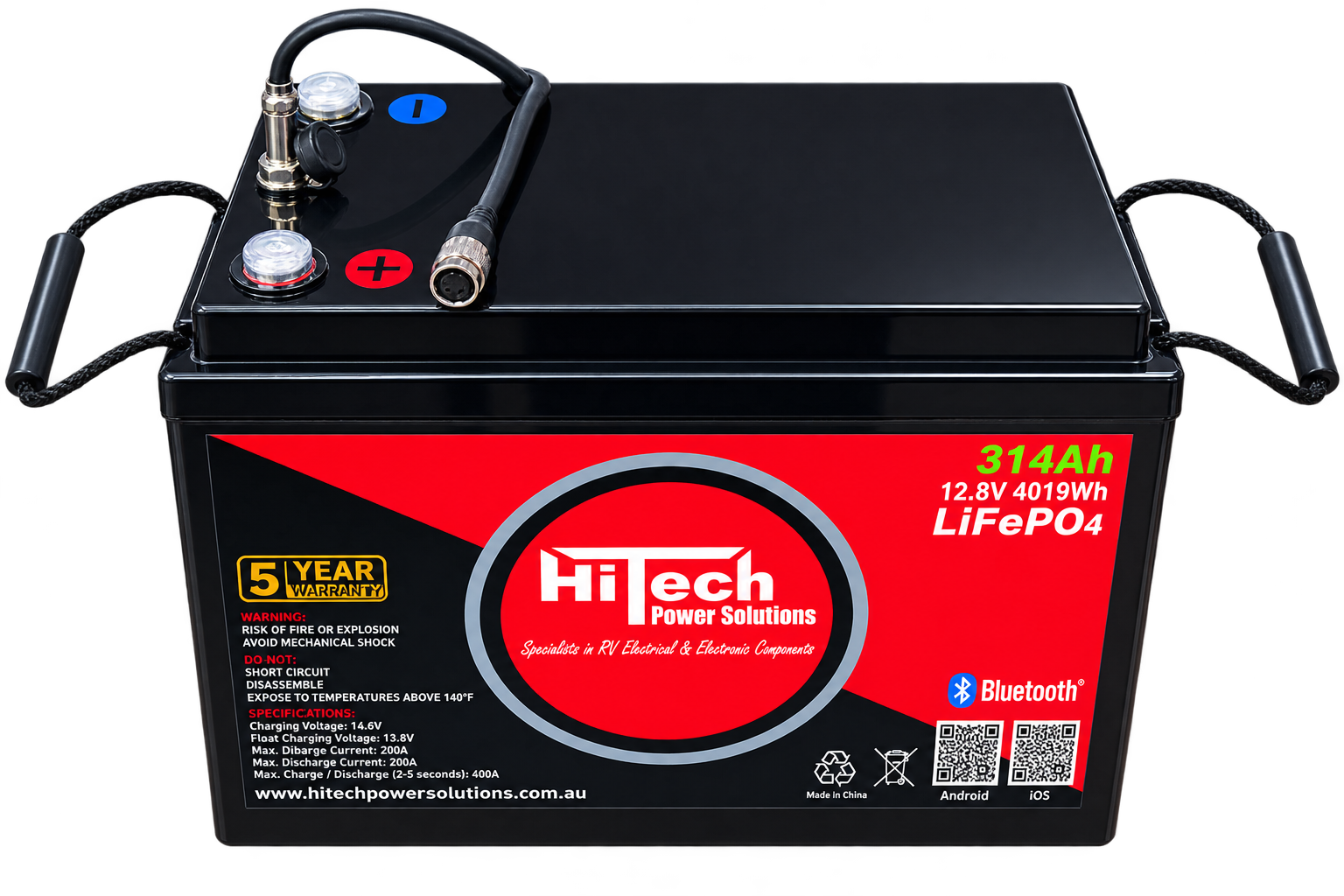

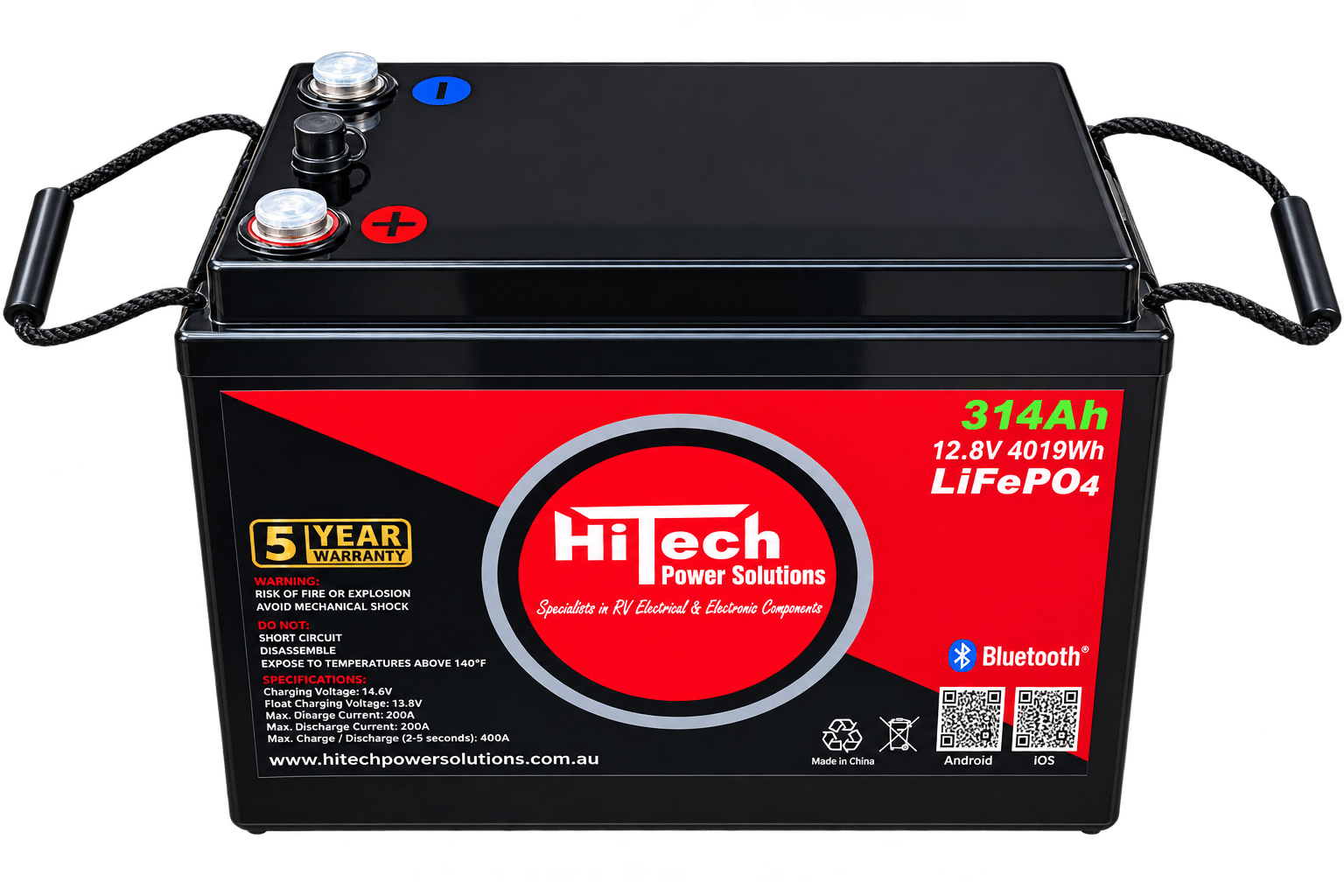

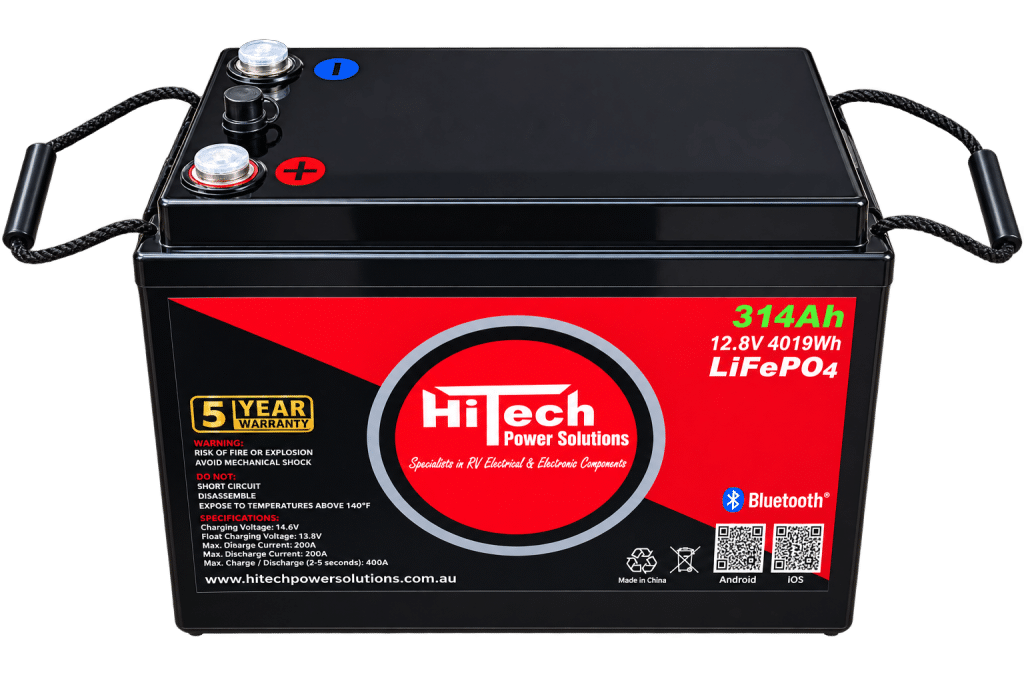

HiTech 314Ah LiFePO4 Lithium Battery for Caravans, Solar and Off Grid Power – With Switch

Power your caravan, RV or off-grid system with dependable, high-capacity energy storage. The HiTech 314Ah LiFePO4 Lithium Battery delivers 4,019Wh of usable energy in a durable, compact design built for demanding Australian conditions.

Premium prismatic cells and an advanced Battery Management System provide stable performance, high discharge capability and protection during everyday operation. An integrated switch provides convenient battery control, while optional Bluetooth connectivity allows compatible models to be monitored through the HiTech mobile app. Through the app, users can view the battery’s state of charge, voltage, current, temperature, cycle count and system alerts in real time. With an IP67-rated ABS enclosure, more than 4,000 rated cycles and support for series or parallel configurations, this battery is an excellent power solution for caravans, solar storage, marine systems, home backup power and other off-grid applications.

Specification	Details
Model	VT12.8V314Ah
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	12.8V
Nominal Capacity	314Ah
Total Energy	4,019Wh
Charge Cut-Off Voltage	14.6V ± 0.2V
Low-Voltage Disconnect	10.0V
Standard Charge Current	62.8A
Maximum Charge Current	157A
Standard Discharge Current	62.8A
Rated Discharge Current	157A
Maximum Discharge Current	200A
Pulse Discharge	600A for less than 3 seconds
Cycle Life	≥4,000 cycles at 100% DOD
Internal Resistance	≤40mΩ
Charging Temperature	0°C to 55°C
Discharging Temperature	−10°C to 60°C
Storage Temperature	−10°C to 45°C
Self-Discharge Rate	Less than 3% per month at 20–25°C
Dimensions	345 × 190 × 245 mm
Weight	Approximately 31.4kg
Enclosure Material	ABS
Protection Rating	IP67
Terminal Type	T8
Series Configuration	Up to 4S, suitable for 48V-class systems
Parallel Configuration	Up to 4P or 1,256Ah
Monitoring	Optional Bluetooth connectivity
Recommended Applications	Caravans, RVs, solar storage, marine systems and off-grid power

• High-capacity 314Ah LiFePO4 battery
• 4,019Wh total energy storage
• Premium lithium iron phosphate prismatic cells
• Advanced Battery Management System protection
• Integrated on/off switch for convenient control
• Optional Bluetooth monitoring through the HiTech mobile app
• Real-time monitoring of charge level, voltage, current and temperature
• Cycle-count and system-alert monitoring
• More than 4,000 rated cycles at 100% depth of discharge
• Maximum continuous discharge current of 200A
• Up to 600A pulse discharge for less than three seconds
• IP67 dust- and water-resistant enclosure
• Durable ABS casing
• Supports series and parallel battery configurations
• Compatible with most lithium-ready inverters, solar controllers and DC-to-DC chargers
• Suitable for caravans, RVs, solar systems, marine applications and backup power

Please Note:
This product is pick-up only and does not include delivery charges.

If you would like the item delivered to your doorstep, please contact the HiTech Power
Solutions team at accounts@hitechpowersolutions.com.au before placing your order through our website.

This HiTech 314Ah LiFePO4 Lithium Battery is backed by a five-year warranty.

If you experience a product issue during the warranty period, contact HiTech Power Solutions and provide proof of purchase. Our team will assess the issue and assist with an eligible repair or replacement.

The warranty does not cover damage caused by misuse, incorrect installation, accidents, unauthorised modifications or repairs performed without prior approval from HiTech Power Solutions.
