Overview

Thank you for selecting the solar charge controller. The controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique and support startup from solar panel. The intelligent charging process has been optimized for long battery life and improves system performance. The multiple load control modes enable It can be widely used on RV ship, etc. the features are listed below:

• ·         Adopt high quality components of ST, Samsung and Fenghua Hi-tech, ensure product using lifespan.
• ·         Molded red and black terminals distinguish plus and minus poles, the product is safer and more reliable.
• ·         Controller can work continuously at full load within the environment temperature range from -20 to 55°C
• ·         3 – stage intelligent PWM charging: Bulk, Boost and float charging mode.
• ·         Support 5 charging options: Sealed, Gel, flooded and LifePO4, Li(NiCoMn)O2 battery.
• ·         LCD Display design, dynamically displaying device’s operating data and working condition.
• ·         Double USB design for 10A and 20A, one USB for 30A and 40A, the power supply charge for more electronic devices.
• ·         With humanized button settings, operation will be more comfortable and convenient.
• ·          Support start up from solar panel
• ·         Multi load control modes
• ·         Energy statistics and working record function
• ·         Battery temperature compensation function
• ·         12 Electronic protections

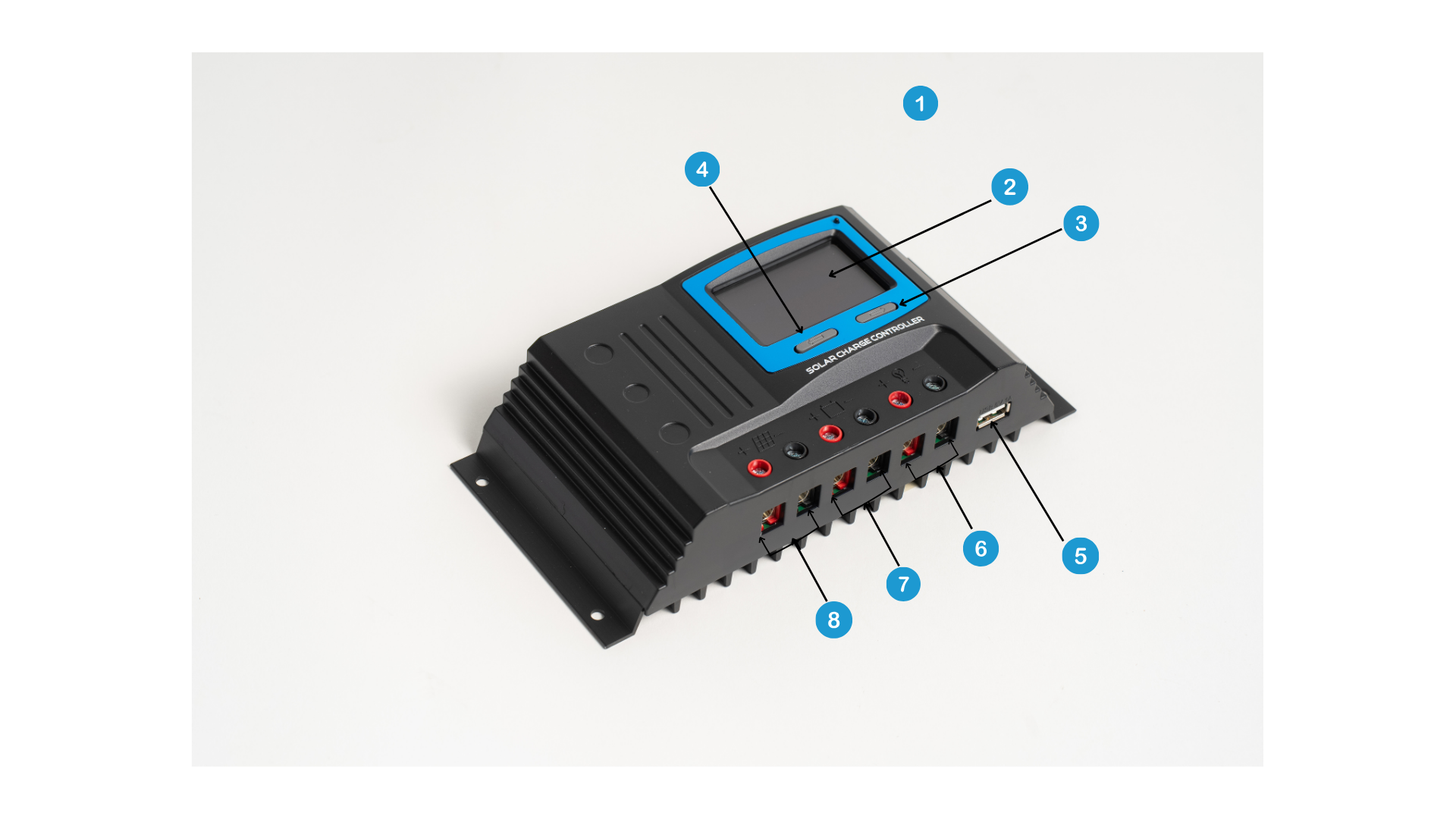

Product Feature

1. Temperature Sensor
2. LCD
3. Operation Button
4. Menu Button
5. USB Output Ports
6. Load Terminals
7. Battery Terminals
8. PV Terminals

USB output ports provide the power supply of 5VDC/1A and have the short circuit protection.
