This Series is a complete solution for replacing lead-acid batteries with lithium batteries. It can be used in RVs, electrical vehicles, electric boats, home energy storage, base station backup power, UPS and Solar/wind energy storage systems.
$1,474.00 + GST
37 in stock

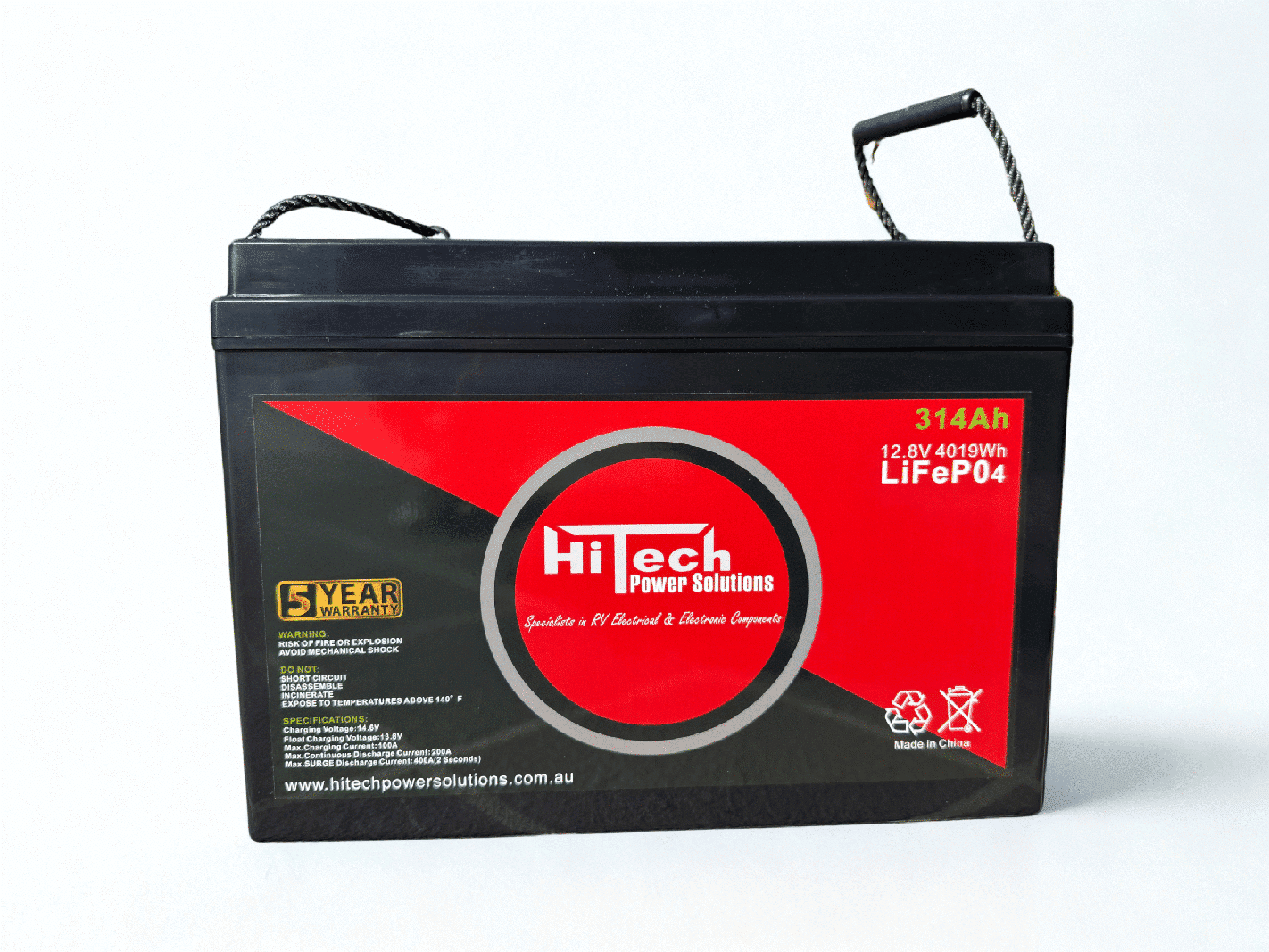

Built for demanding power needs, the 314Ah HiTech Lithium Iron Phosphate Battery (LiFePO4) delivers exceptional energy storage and reliability for:
🚐 large caravans, 🚤 marine vessels, 🏠 home energy storage, and 🏭 industrial backup applications.
Featuring:
✅ Premium prismatic cells
✅ Advanced BMS protection
✅ Optional Bluetooth monitoring
You get long cycle life, high discharge power, and weatherproof durability — all in one robust package.
Monitor real-time performance:
📊 State of Charge (SOC)
🔌 Voltage & Current
🌡 Temperature
🔔 Cycle Count & Alerts
View live data on the HiTech mobile app via Bluetooth — perfect for diagnostics & on-the-go monitoring.
🚐 Caravan & RV off-grid systems
☀️ Solar & wind storage
🚤 Marine & electric boat power
🔋 Home backup & UPS systems
📡 Telecom & base station backup
✅ Fits large deep-cycle trays
✅ T8 terminals for secure high-current connections
✅ Works with most 12V inverters, solar charge controllers & DC-to-DC chargers
✅ Supports series or parallel setups for bigger systems
💧 IP67 dust & water resistant
🛡 Tough ABS casing
❄️ -10°C to 60°C temperature range
Perfect for harsh outback conditions or marine environments
Technical Specifications
| Specification | Value |
|---|---|
| Model | VT12.8V314Ah |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 314Ah |
| Total Energy | 4019Wh |
| Charge Cut-off Voltage | 14.6 ± 0.2V |
| Low Voltage Disconnect | 10.0V |
| Standard Charge Current | 62.8A (0.2C) |
| Max Charge Current | 157A (1C) |
| Standard Discharge | 62.8A (0.2C) |
| Rated Discharge | 157A (0.5C) |
| Max Discharge | 200A |
| Pulse Discharge (<3s) | 600A |
| Cycle Life | ≥ 4000 cycles @1C, 100% DOD |
| Internal Resistance | ≤ 40 mΩ |
| Operating Temp – Charge | 0°C to 55°C |
| Operating Temp – Discharge | -10°C to 60°C |
| Storage Temp | -10°C to 45°C |
| Self-Discharge Rate | <3% per month (20–25°C) |
| Dimensions (L×W×H) | 345 × 190 × 245 mm |
| Weight | ≈ 31.4 kg |
| Enclosure Material | ABS |
| Protection Rating | IP67 |
| Terminal Type | T8 |
| Series Configuration | 4S (up to 48V) |
| Parallel Configuration | 4P (up to 1256Ah) |
Please Note:
This product is pick-up only and does not include delivery charges.
If you would like the item delivered to your doorstep, please contact the HiTech Power
Solutions team at accounts@hitechpowersolutions.com.au before placing your order through our website.
This product comes with a 5-year warranty. If you experience any issues, please contact us with your proof of purchase, and we will assist with repairs or replacements. Warranty excludes damage from misuse or unauthorized repairs.
